X11SCA

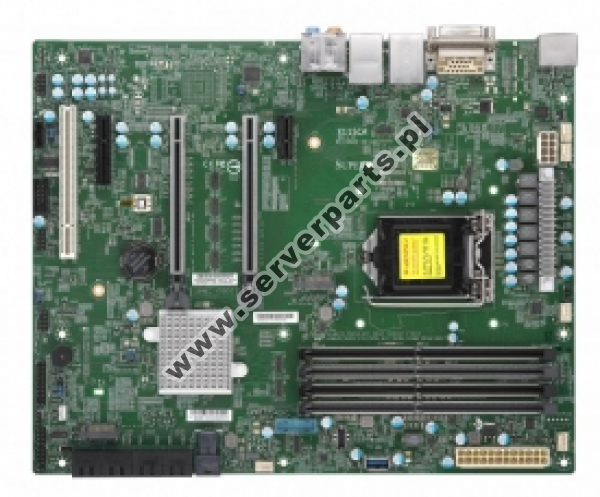

Motherboard Supermicro MBD-X11SCA C246 LGA1151 Intel Xeon E-2100/E-2200 LGA1151 SATA M.2 DDR4
You can check our refurbished list on our blog https://www.serverparts.pl/en/blog?q=refurbished
Net: $ 281.41
Gross: $ 346.13
Availability: EOL
Manufacturer: Supermicro
Part number: X11SCA
Warehouse product ID: 402494, 402495
Size of the package (LxWxH): 47cm x 38cm x 9cm
UPC/EAN: 672042323975
HS: 8473 30 20 00
ECCN: 5A992C
Availability*: PL: NoneNL: 131 pcs. (estimated delivery time from 4 to 10 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 7.19 net ($ 8.84 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
Kluczowe cechy / Key features :
1. 8th Generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® E processor (Coffee Lake-S) Server, Intel® Xeon® E processor (Coffee Lake-S) Workstation., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
2. Intel® C246
3. Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
4. 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, 2 PCI-Ex16 slots are running at NA/16, or 8/8,1 - 5V PCI 32bit, M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1, M.2 Form Factor: 22110, M.2 Key: M-Key,M.2#1 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2
U.2 Interface: 1 PCI-E 3.0 x4
5. 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, Intel UHD P630 graphic(For CPU Xeon E-21XXG series only)
6. Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
7. Single LAN with Intel® Ethernet Controller I210-AT, Single LAN with Intel® PHY I219LM LAN controller
Support vPro
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||
|---|---|---|---|---|---|
| SKU | MBD-X11SCA | ||||
| Basic informations | |||||
| Chipset | C246 | ||||
| Format | ATX | ||||
| Size | 12" x 9.6" | ||||
| Expansion slots # | 5 | ||||
| Processor | |||||
| CPU socket | LGA1151 | ||||
| CPU family | Intel Xeon E-2100/E-2200 LGA1151, Intel Core 8th/9th i7 i5 i3 Coffee Lake LGA1151 | ||||
| CPU builtin | No | ||||
| Max. CPU # | 1 | ||||
| SNK shape | Standard | ||||
| System Memory | |||||
| Max. memory size support | 64 GB | ||||
| Memory sockets # | 4 | ||||
| Memory correction support | EU | ||||
| Memory size type support | DIMM | ||||
| Memory type support | DDR4 | ||||
| On-Board Devices | |||||
| SATA support | Yes | ||||
| SATA sockets # | 8 | ||||
| SAS support | No | ||||
| NVMe support | No | ||||
| M.2 support | Yes | ||||
| M.2 sockets # | 3 | ||||
| NIC # | 1 | ||||
| NIC chipset/type |
|
||||
| Hardaware RAID | No | ||||
| IPMI | No | ||||
| VGA | No | ||||
| Other | |||||
| Supported RSC | N/D | ||||
| Application | High-efficiency, Cost-effective | ||||
| Power consumption | 95 W | ||||
