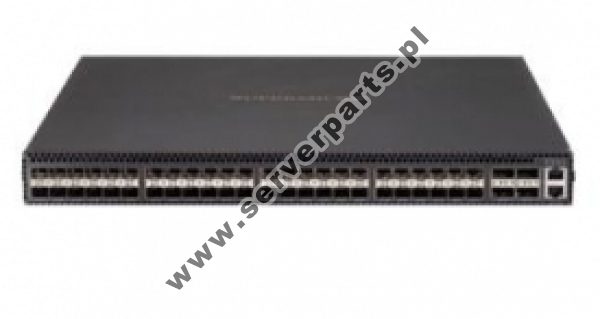

X3348S

Switching Features:

- Link Aggregation - 24 groups w/ 8 members per group
- LACP Support
- MLAG Support
- Link Layer Discovery Protocol (802.1AB)
- Jumbo Frame Support
- Port Mirroring - N to 1. Tx & Rx Configurable

Routing Features:

- Static Routing, RIP v1/v2, RIPng, OSPF v1/v2/v3 & BGP
- IPv4 and IPv6 Routing
- VRRP (Virtual Router Redundancy Protocol)
- DVMRP (Distance Vector Multicast Routing Protocol

Port Attributes:

- 48 Ten Gigabit Ethernet ports - SFP+ Connectors
- 4 Forty-Gigabit Ethernet ports - QSFP Connectors
- 2 One-Gigabit Ethernet ports - RJ45 Connectors
- Out-of-band RS-232 Management port

Performance:

- Switching capacity: 1284 Gbps

Availability:

- Spanning Tree (802.1D)
- Rapid Spanning Tree (802.1w)
- Multiple Spanning Trees (802.1s)
- Virtual Redundant Routing Protocol (VRRP)

VLAN:

- 802.1Q tagging, port and protocol based
- 4K VLANs
- Dynamic VLAN Support (GVRP)

Quality of Service and DiffServ:

- 8 priority queues per port
- Adjusted WRR and Strict Priority Scheduling
- Layer 2 / 3 / 4 Prioritization
- Marking
- Metering / Rate limiting

Multicast:

- IGMP Snooping v1/ v2/ v3
- IGMP v1/ v2/ v3
- PIM SM, PIM DM
- PIM SMv6

Security:

- 802.1x Port Based Authentication
- Switch access password protection
- Layer 2 / 3 / 4 Access control Lists
- RADIUS and TACACS+ Authentication
- SSH / SSL Encryption

Management:

- Web-based management interface
- HTTP, HTTPS
- Telnet (4 sessions)
- Industry standard CLI with telnet, SSH or local management port
- Scripting capability
- Command completion
- Context sensitive "Help"
- Multiple levels of user privileges (CLI and Web UI)
- SNMP v1/v2/v3
- Four RMON Groups - (1, 2, 3 and 9)
- Logging - syslog
- Dual firmware images
- Configuration file - upload / download

Dimensions:

- 17.3" W x 18.6" D x 1.7" H
(440mm W x 473mm D x 43mm H)

Weight:

- 18.1 lbs / 8.18 kg

Power:

- Dual 400W Hot-swap Redundant Power Supplies
- Power Consumption of 326W

Operating Temperature:

- 0°C to 40°C
