5039MS-H12NR

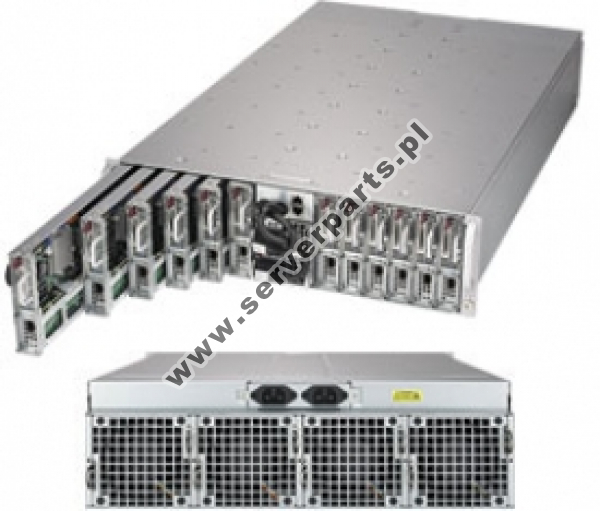

Server MicroCloud Supermicro SYS-5039MS-H12NR • 939HN-R2K04BP • X11SSE-F • MicroCloud Intel IPMI
You can check our refurbished list on our blog https://www.serverparts.pl/en/blog?q=refurbished
Kluczowe cechy / Key features :
1. Single socket H4 (LGA 1151) supports, Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,
Intel® Celeron® and Intel® Pentium®
2. Intel® C236 chipset
3. Up to 128GB unbuffered VLP ECC, up to DDR4-2666MHz; 4 DIMM slots
4. 1 Micro-LP slot (MicroLP upgradable)
5. 4x 2.5" NVMe SSD and 1 M.2 (2280 SATA3)
6. 1 SFP28 25 GbE LAN port, 1 dedicated IPMI LAN
7. Aspeed AST2500 graphics
8. 4x 9cm Heavy duty fans with optimal cooling zone (per system)
9. 2000W Redundant power supplies Titanium Level Certified (per system)
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | SYS-5039MS-H12NR | ||||||||
| Basic informations | |||||||||
| Server content |
|
||||||||
| Nodes # | 12 | ||||||||
| 1 GbE LAN Ports # | 1[1] | ||||||||
| Power type | AC | ||||||||
| Family | MicroCloud Intel | ||||||||
| Application | High-efficiency, Cost-effective | ||||||||
| Chassis | |||||||||
| Product name | 5039MS-H12NR | ||||||||
| More info at manufacturer site | Click here to view Broken link? Report us. | ||||||||
| Basic informations | |||||||||
| U size | 3U | ||||||||
| Expansion slots # | 1[1] | ||||||||
| I/O Ports | Rear | ||||||||
| Power Supply | |||||||||
| Redundant power supply | Yes | ||||||||
| Power supply power | 2000 W | ||||||||
| Power supply type | AC | ||||||||
| Drives | |||||||||
| Hot-Swap | No | ||||||||
| Max. drives # | 4[1] | ||||||||
| 3,5" drives support | Yes | ||||||||
| 2,5" drives support | No | ||||||||
| SATA support | Yes | ||||||||
| SAS support | No | ||||||||
| CD/DVD drive installation possibility | No | ||||||||
| SAS controller required | No | ||||||||
| Motherboard[1] | |||||||||
| Product name | X11SSE-F | ||||||||
| More info at manufacturer site | Click here to view Broken link? Report us. | ||||||||
| Basic informations | |||||||||
| Chipset | C236 | ||||||||
| Format | Proprietary | ||||||||
| Size | 4.6" x 11.7" | ||||||||
| Expansion slots # | 1 | ||||||||
| Processor | |||||||||
| CPU socket | LGA1151 | ||||||||
| CPU family | Intel Xeon E3-1200V5/V6 LGA1151 | ||||||||
| CPU builtin | No | ||||||||
| Max. CPU # | 1 | ||||||||
| SNK shape | Standard | ||||||||
| System Memory | |||||||||
| Max. memory size support | 64 GB | ||||||||
| Memory sockets # | 4 | ||||||||
| Memory correction support | EU | ||||||||
| Memory size type support | DIMM | ||||||||
| Memory type support | DDR4 | ||||||||
| On-Board Devices | |||||||||
| SATA support | Yes | ||||||||
| SATA sockets # | 4 | ||||||||
| SAS support | No | ||||||||
| NVMe support | No | ||||||||
| NIC # | 2 | ||||||||
| NIC chipset/type |
|
||||||||
| Hardaware RAID | No | ||||||||
| IPMI | Yes | ||||||||
| VGA | Yes | ||||||||
| Other | |||||||||
| Supported RSC | RSC-RR1U-E8 | ||||||||
| Application | Storage | ||||||||
| Power consumption | 80 W | ||||||||
