AOM-S3108M-H8L

RAID/HBA Card Supermicro AOM-S3108M-H8L 240xHDD LSI SAS 3108

Supermicro
Product unavailable (EOL) or limited sale (shortage). Please contact us.
AOM-S3108M-H8L

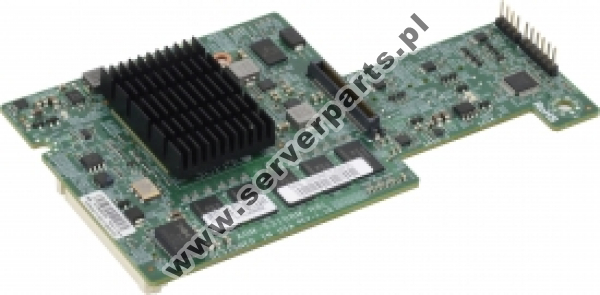

Image above may show a varied configuration or optional parts.

Net: $ 631.94

Gross: $ 777.29

Availability: EOL

Manufacturer: Supermicro
Part number: AOM-S3108M-H8L
Warehouse product ID: 58197

Kluczowe cechy / Key features :

1. Broadcom 3108 8-port PCI-E SAS-3 controller
2. 8-port (8 internal) 12Gb/s per port
3. Supports RAID 0, 1, 5, 6, 10, 50, 60
4. On board hardware IO Processor
5. 2GB 1866MHz DDR3 on-card cache
6. MegaRAID configuration and management utilities
7. Power management support
8. SAS transfer rates up to 12Gb/s and SATA rates up to 6Gp/s
9. Optional Cachecade feature for higher performance
10. Supports SSP, SMP, STP and SATA protocols
11. Optional Supercap/TFM Unit for cached data protection, (BTR-CV3108-U1) - operating temperature (Ambient)
from 10°C - 55°C
12. OS Support : Windows 2012, 2k8 64/32 bit, Red Hat, Enterprise and SUSE Linux
13. Power Usage 16W

Product description

We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.

Manufacturer Supermicro
SKU AOM-S3108M-H8L
Basic informations
Chipset LSI SAS 3108
Type HW
RAID type 0,1,5,6,10,50,60
Max. HDD # 240
NVMe support No
Ports external # 0
Ports internal # 8
Interface SAS2, SATA3
Cache 0MB
BBU N/DMB
