C7H170-M
Motherboard Supermicro MBD-C7H170-M Intel® H170 LGA1151 Intel Core 6th/7th i7 i5 i3 Skylake LGA1151 SATA M.2 DDR4
You can check our refurbished list on our blog https://www.serverparts.pl/en/blog?q=refurbished
Net: $ 133.75
Gross: $ 164.51
Availability: EOL
Manufacturer: Supermicro
Part number: C7H170-M
Warehouse product ID: 28628
Size of the package (LxWxH): 47cm x 38cm x 9cm
UPC/EAN: 672042197859
Kluczowe cechy / Key features:
1. Single socket H4 (LGA 1151) supports Intel® 6th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®
2. Intel® H170 Express Chipset
3. Up to 64GB Non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
4. Single Gigabit Ethernet LAN port (Intel® i219V)
5. 6x SATA3 (6Gbps); RAID 0, 1, 5, 10
6. Expansion slots: 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4, and 1 PCI-E 3.0 x1
7. 1 PCIe M.2 (support PCIe x4 only, 2260/2280/22110)
8. 6x USB 3.0 (4 rear + 2 via header), 4x USB 2.0 (2 rear + 2 via headers)
9. 1 DVI-D, 1 DP (Display Port), 1 HDMI
10. HD Audio 7.1 channel connector by Realtek ALC1150
11. UEFI BIOS support
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.

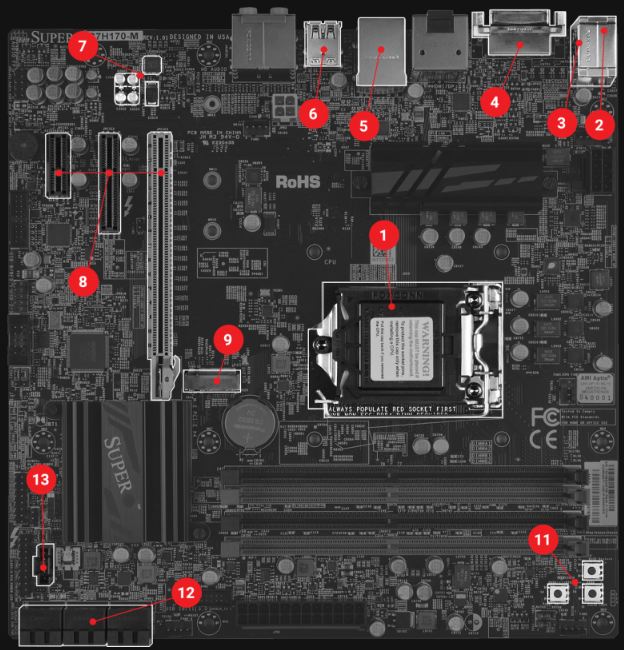

- 15µ Gold Plated Single CPU socket H4 (LGA 1151) supports Intel® 6th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® Processor
- PS/2 Port
- 4 x USB 2.0 (2 rear, 2 via headers)
- HDMI 1.4b; Display Port 1.2; DVI-D Triple Display Output Support; 4K/Ultra HD Display Support
- 1 x Intel® Gbit Ethernet LAN Ports
- 6 x USB 3.0 (4 rear, 2 via header)
- RealTek ALC 1150 HD Audio; Isolated Audio PCB; Server-grade CAPs
- 1 x PCIe 3.0 x16 slot; 1 x PCIe 3.0 x4 slot; 1 x PCIe 3.0 x 1 slot
- M.2 Socket 3 with M Key (PCIe 3.0 x4 mode) Supports 2260, 2280, and 22110 form factors
- All digital server-grade VRM
- Clear CMOS Button; Power Button; BIOS Restore Button
- 6 x SATA3 (6Gbps) Ports
- 1 x Thunderbolt AIC header
- 1 x USB 3.1 Type C Port (via header)
| Manufacturer | Supermicro | ||||
|---|---|---|---|---|---|
| SKU | MBD-C7H170-M | ||||
| Basic informations | |||||
| Chipset | Intel® H170 | ||||
| Format | uATX | ||||
| Size | 9.6" x 9.6" | ||||
| Expansion slots # | 3 | ||||
| Processor | |||||
| CPU socket | LGA1151 | ||||
| CPU family | Intel Core 6th/7th i7 i5 i3 Skylake LGA1151 | ||||
| CPU builtin | No | ||||
| Max. CPU # | 1 | ||||
| SNK shape | Standard | ||||
| System Memory | |||||
| Max. memory size support | 64 GB | ||||
| Memory sockets # | 4 | ||||
| Memory correction support | UN | ||||
| Memory size type support | DIMM | ||||
| Memory type support | DDR4 | ||||
| On-Board Devices | |||||
| SATA support | Yes | ||||
| SATA sockets # | 6 | ||||
| SAS support | No | ||||
| NVMe support | No | ||||
| M.2 support | Yes | ||||
| M.2 sockets # | 1 | ||||
| NIC # | 1 | ||||
| NIC chipset/type |
|
||||
| Hardaware RAID | No | ||||
| IPMI | No | ||||
| VGA | Yes | ||||
| Other | |||||
| Supported RSC | N/D | ||||
| Application | Workstation, Gaming | ||||
| Power consumption | 115 W | ||||
