C7Z270-CG-L

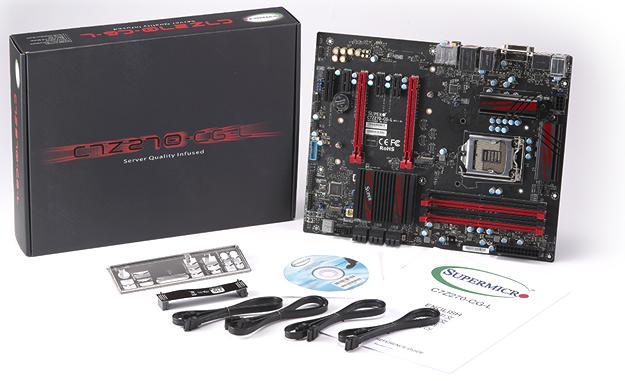

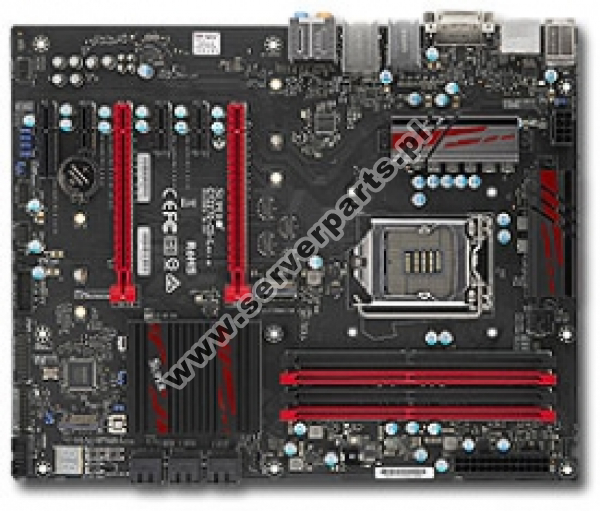

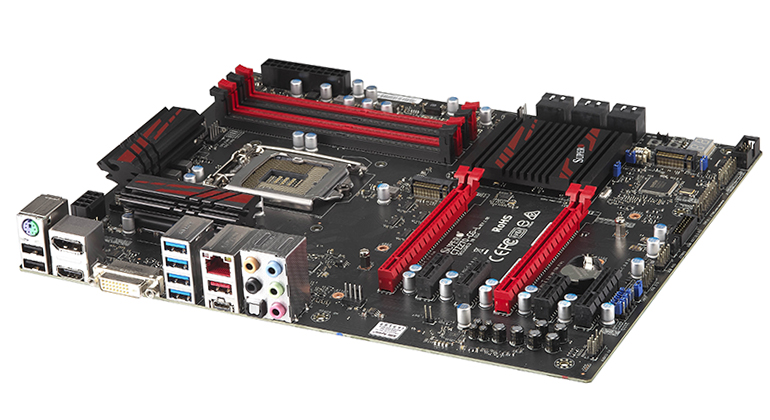

Motherboard Supermicro MBD-C7Z270-CG-L Intel® Z270 LGA1151 Intel Core 6th/7th i7 i5 i3 Skylake LGA1151 SATA M.2 DDR4
You can check our refurbished list on our blog https://www.serverparts.pl/en/blog?q=refurbished
Net: $ 162.64
Gross: $ 200.05
Availability: EOL
Manufacturer: Supermicro
Part number: C7Z270-CG-L
Warehouse product ID: 144886
Size of the package (LxWxH): 47cm x 38cm x 9cm
UPC/EAN: 672042240500
Kluczowe cechy / Key features:

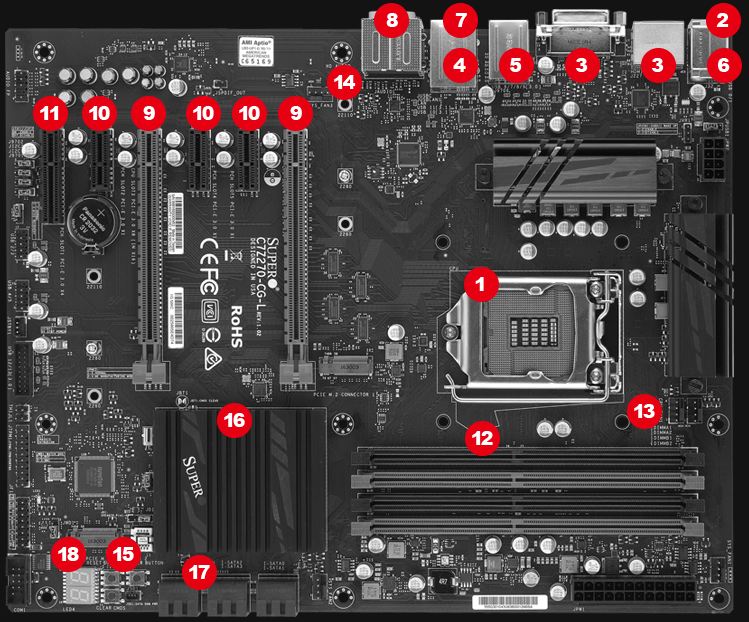

1. Single socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core™ i7/i5/i3 series
2. Intel® Z270 Express Chipset
3. Up to 64GB Non-ECC UDIMM, DDR4-2800MHz (OC), in 4 DIMM slots
4. 1 GbE LAN port via Intel® i219V
5. 6 SATA3 (6Gbps); RAID 0, 1, 5, 10
6. 2 PCI-E 3.0 x16 (16/NA or 8/8), 1 PCI-E 3.0 x4, 3 PCI-E 3.0 x1
7. 2 PCIe 3.0 x4 M.2
8. 6 USB 3.0 (4 rear, 2 via header), 6 USB 2.0 (2 rear, 4 via headers), 2 USB 3.1 (1 Typa A, 1 Type C)
9. 1 DP (Display Port), 1 HDMI, 1 DVI-D
10. HD Audio 7.1 channel connector by Realtek ALC1150, support SPDIF-Out
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
- 15µ Gold Plated Single CPU socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® Processor
- PS/2 Port
- HDMI 2.0; Display Port 1.2; DVI-D port; Triple Display Output Support; 4K/Ultra HD Display Support
- Intel® Gbit Ethernet LAN Port
- 6x USB 3.0 ports (4 rear, 2 via headers)
- 8x USB 2.0 ports (2 rear, 4 via header)
- 2 x USB 3.1 (Type A and Type C)
- 7.1 HD Audio Ports
- 2x PCIe 3.0 x16 slots (run at 16/NA or /8/8)
- 3x PCIe 3.0 x1 slots
- 1x PCIe 3.0 x4 slots
- Supports Intel® overclocking Extreme Memory Profile (XMP) DIMM (Up to 2800+MHz)
- 2 4pin PWN FAN connector for Liquide Cooling fan and pump
- 2 4pin PWN FAN connector for PWM or DC case fans
- Power button; Reset button; Clear CMOS button
- Intel® Z270 Chipset
- 6 x SATA3 (6Gbps) Ports
- Status LED for troubleshooting
| Manufacturer | Supermicro | ||||
|---|---|---|---|---|---|
| SKU | MBD-C7Z270-CG-L | ||||
| Basic informations | |||||
| Chipset | Intel® Z270 | ||||
| Format | ATX | ||||
| Size | 12" x 9.6" | ||||
| Expansion slots # | 6 | ||||
| Processor | |||||
| CPU socket | LGA1151 | ||||
| CPU family | Intel Core 6th/7th i7 i5 i3 Skylake LGA1151 | ||||
| CPU builtin | No | ||||
| Max. CPU # | 1 | ||||
| SNK shape | Standard | ||||
| System Memory | |||||
| Max. memory size support | 64 GB | ||||
| Memory sockets # | 4 | ||||
| Memory correction support | UN | ||||
| Memory size type support | DIMM | ||||
| Memory type support | DDR4 | ||||
| On-Board Devices | |||||
| SATA support | Yes | ||||
| SATA sockets # | 6 | ||||
| SAS support | No | ||||
| NVMe support | No | ||||
| M.2 support | Yes | ||||
| M.2 sockets # | 2 | ||||
| NIC # | 1 | ||||
| NIC chipset/type |
|
||||
| Hardaware RAID | No | ||||
| IPMI | No | ||||
| VGA | No | ||||
| Other | |||||
| Supported RSC | N/D | ||||
| Application | Workstation, Gaming | ||||
| Power consumption | 25 W | ||||
