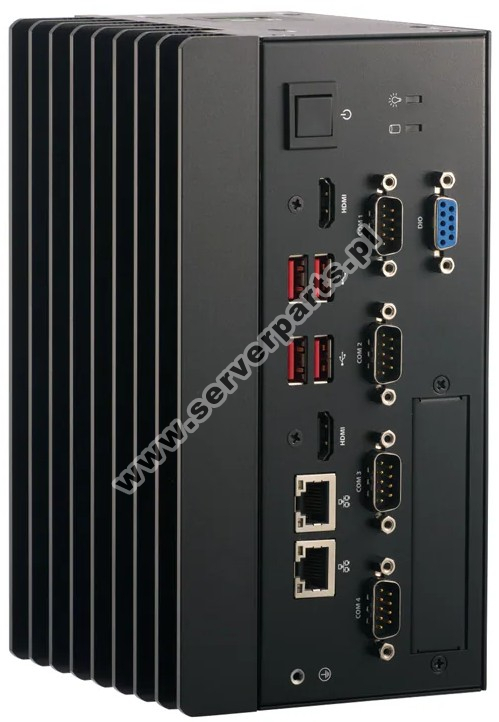

SYS-E101-14AM-E
IoT Gateway Supermicro SYS-E101-14AM-E • CSE-E101-IA3 • A4SAN-E-WOHS
Net: $ 520.56
Gross: $ 640.29
Manufacturer: Supermicro
Part number: SYS-E101-14AM-E
Warehouse product ID: 2172856
Availability*: On order (estimated delivery time from 10 to 21 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 7.67 net ($ 9.44 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
More info at manufacturer site
Broken link? Report us.
Kluczowe cechy / Key features :
1. Fanless DIN Rail Mounted System, Fanless Embedded chassis with 4.96" (126mm) depth
2. Intel® Atom® x7433RE up to 9W TDP
3. 1 DIMM supporting up to 16 GB of Non-ECC DDR5 SO-DIMM with speeds up to 4800 MT/s
4. 2 RJ45 2.5GbE
5. 2.5" SATA SSD
6. 4 USB 3.2;2 HDMI 1.4;4 COM ports (COM1/2 RS232/422/485 + COM3/4 RS232);1 SMBUS 8-bit GPIO
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | SYS-E101-14AM-E | ||||||||
| Basic informations | |||||||||
| Server content |
|
||||||||
| Dimensions (HxWxD) | 12.01" (H) x 27.17" (W) x 12.6" (D) | ||||||||
| Power Supply | 60W AC | ||||||||
| Memory support limit | 16GB DDR5 | ||||||||
| Slots for disks | 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/2280/3042/3052) | ||||||||
| Motherboard | |||||||||
| Product name | A4SAN-E-WOHS | ||||||||
| More info at manufacturer site | Click here to view Broken link? Report us. | ||||||||
| Basic informations | |||||||||
| Chipset | SoC | ||||||||
| Format | 3.5" SBC | ||||||||
| Size | 5.7" x 4" | ||||||||
| Expansion slots # | 0 | ||||||||
| Processor | |||||||||
| CPU socket | FCBGA1264 | ||||||||
| CPU family | Intel Atom | ||||||||
| CPU builtin | No | ||||||||
| Max. CPU # | 1 | ||||||||
| SNK shape | Standard | ||||||||
| System Memory | |||||||||
| Max. memory size support | 16 GB | ||||||||
| Memory sockets # | 1 | ||||||||
| Memory correction support | NON-ECC | ||||||||
| Memory size type support | SODIMM | ||||||||
| Memory type support | DDR5 | ||||||||
| On-Board Devices | |||||||||
| SATA support | Yes | ||||||||
| SATA sockets # | 1 | ||||||||
| SAS support | No | ||||||||
| NIC # | 2 | ||||||||
| NIC chipset/type |
|
||||||||
| Hardaware RAID | No | ||||||||
| IPMI | No | ||||||||
| VGA | No | ||||||||
| Other | |||||||||
| Supported RSC | N/D | ||||||||
| Application | High-efficiency, Cost-effective | ||||||||
| Power consumption | 9 W | ||||||||
Product description errors? Please let us know.
