Płyty główne Supermicro X14 dedykowane dla Intel® Xeon® 6 6 LGA-4710 (Socket E2)

X14SBW-TF

X14SBW-F

X14SBT-G

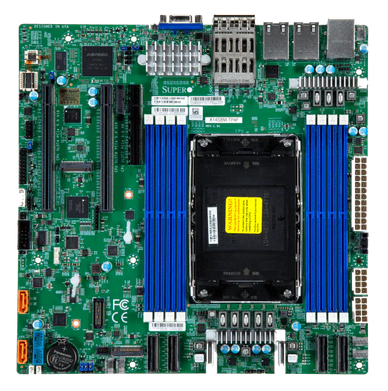

X14SBM-TP4F

Rozmiar

Proprietary WIO

Proprietary WIO

Proprietary

microATX

Wejść na procesory

1

1

1

1

Wspierane procesory

Intel® Xeon® 6700E-series, Single Socket LGA-4710 (Socket E2)

Intel® Xeon® 6700E-series, Single Socket LGA-4710 (Socket E2)

Intel® Xeon® 6700E-series, Single Socket LGA-4710 (Socket E2)

Intel® Xeon® 6700E-series processors, Single Socket LGA-4710 (Socket E2)

Maksymalna pojemność RAM oraz liczba ich złącz

1TB, 8 DIMM

1TB, 8 DIMM

1TB, 16 DIMM

1TB, 8 DIMM

Prędkości pamięci

6400MT/s DDR5

6400MT/s DDR5

6400MT/s DDR5 / 5200MT/s DDR5

6400MT/s DDR5

Chipset

SoC

SoC

SoC

SoC

Kontroler dysków

ASMediaASM1164 controller for 8 SATA3 ports

ASMediaASM1164 controller for 8 SATA3 ports

-

ASMediaASM1061 controller for 2 SATA3 ports

Złącza PCI-E

4 PCIe 5.0 X8 via MCIO connectors
1 PCIe 5.0 x8 (WIO-R),
2 PCIe 5.0 x16 (WIO-L),
M.2 Interface: 2 PCIe 5.0 x2

4 PCIe 5.0 X8 via MCIO connectors1 PCIe 5.0 x8 (WIO-R),
2 PCIe 5.0 x16 (WIO-L),
M.2 Interface: 2 PCIe 5.0 x2

1 PCIe 5.0 x8 via customized 124-pin slim cool edge connector(for front I/O module)
2 PCIe 5.0 x16 via Molex Impleplus connectors
4 PCIe 5.0 X8 via MCIO connectors
M.2 Interface: 2 PCIe5.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key

4 PCIe 5.0 X8 via MCIO connectors
1 PCIe 5.0 x8,
2 PCIe 5.0 x16,
M.2 Interface: 2 PCIe 5.0 x2

LAN

2 RJ45 10 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

AIOM for LAN

2 RJ45 10 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
2 10G SFP+ LAN ports

USB

4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)

4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)

-

4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)

Złącze wideo

1 VGA D-Sub Connector port(s)

1 VGA D-Sub Connector port(s)

-

1 VGA D-Sub Connector port(s)

Dodatkowe złącza

2 COM Port(s) (1 header; 1 rear)
1 TPM Header
1 TPM TPM 2.0 onboard

2 COM Port(s) (1 header; 1 rear)1 TPM Header
1 TPM TPM 2.0 onboard

AIOM for LAN
1 TPM Header

1 COM Port(s) (1 header)
1 TPM Header
1 TPM TPM 2.0 onboard

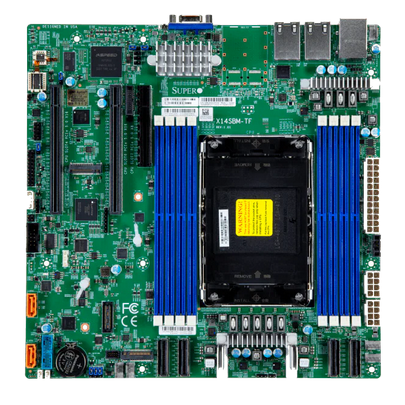

X14SBM-TF

X14SBHM

X14SBH

X14DBT-B

Rozmiar

microATX

OCP M-DNO

Propietary

Propietary

Wejść na procesory

1

1

1

2

Wspierane procesory

Intel® Xeon® 6700E-series processors, Single Socket LGA-4710 (Socket E2)

Intel® Xeon® 6700E-series, Single Socket LGA-4710 (Socket E2)

Intel® Xeon® 6700E-series, Single Socket LGA-4710 (Socket E2)

6th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4710 (Socket E2)

Maksymalna pojemność RAM oraz liczba ich złącz

1TB, 8 DIMM

1TB, 16 DIMM

1TB, 16 DIMM

2TB, 16 DIMM

Prędkości pamięci

6400MT/s DDR5

6400MT/s DDR5 / 5200MT/s DDR5

6400MT/s DDR5 / 5200MT/s DDR5

6400MT/s DDR5

Chipset

SoC

SoC

SoC

SoC

Kontroler dysków

-

-

-

Złącza PCI-E

4 PCIe 5.0 X8 via MCIO connectors
1 PCIe 5.0 x8,
2 PCIe 5.0 x16,
M.2 Interface: 2 PCIe 5.0 x2

2 PCIe 5.0 x16 M-XIO
1 PCIe 5.0 x16 AIOM
M.2 Interface: 2 PCIe 5.0 x2 M-PIC

2 PCIe 5.0 x16 4C
1 PCIe 5.0 x16 AIOM
M.2 Interface: 2 PCIe 5.0 x2

1 PCIe 5.0 x16 for Left riser card support,
1 PCIe 5.0 x16 for Right riser card support,
1 PCIe 5.0 x4 (in x16 slot), For M.2 adapter to support two NVMe M.2 devices,
1 PCIe 5.0 x8 (in x16 slot), For M.2 adapter to support two NVMe M.2 devices,
1 PCIe 5.0 x16 AIOM, OCP 3.0 compliant,
1 PCIe 5.0 x16 (in x16 slot), For NVMe SCC storage card,
1 PCIe 5.0 x8, For NVMe SCC storage card,
1 PCIe 5.0 x8, For SAS SCC storage card,
1 PCIe 5.0 x8 M.2 Slot, For M.2 adapter to support RAID two NVMe M.2 devices,
3 PCIe 5.0 x8 NS connector, For cabling to SCC storage card
M.2 Interface: 4 PCIe 5.0 x4, RAID 0 & 1

LAN

2 RJ45 10 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

AIOM for LAN

AIOM for LAN

 Single LAN
 AIOM for LAN

USB

4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)

1 USB 3.2 Gen1 port(s) (1 type A)

2 USB 3.2 Gen1 port(s) (2 via header)

2 USB 3 port(s) (2 rear type A)

Złącze wideo

1 VGA D-Sub Connector port(s)

-

-

1 VGA port(s)

Dodatkowe złącza

1 COM Port(s) (1 header)
1 TPM Header
1 TPM TPM 2.0 onboard

1 TPM Header
1 DC-SCM DC-SCI 2.0

1 TPM Header
1 TPM TPM 2.0 onboard

1 COM Port(s) (1 Serial Port)
1 TPM Header

X14DBM-SP

X14DBHM

Rozmiar

Propietary

OCP M-FLW

Wejść na procesory

2

2

Wspierane procesory

6th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4710 (Socket E2)

Intel® Xeon® 6 processors, LGA-4710 (Socket E2)

Maksymalna pojemność RAM oraz liczba ich złącz

4TB, 32 DIMM

8TB, 32DIMM

Prędkości pamięci

6400 MT/s DDR5

6400 MT/s DDR5

Chipset

SoC

SoC

Kontroler dysków

-

-

Złącza PCI-E

15 PCIe 5.0 x8 MCIO connector
M.2 Interface: 2 PCIe 5.0 x2

2 PCIe 5.0 x16 AIOM Slot, AIOM slots Superset of OCP 3.0 Expansion,
4 PCIe 5.0 x16,
1 PCIe 5.0 x8 (in x16 slot),
8 PCIe 5.0 x8
M.2 Interface: 2 PCIe 5.0 x4

LAN

-

2 AIOM

USB

-

1 USB 3.2 Gen1 port(s) (1 type A)

Złącze wideo

-

-

Dodatkowe złącza

-

1 TPM Header
1 TPM TPM 2.0 onboard
