Serwery Gigabyte, płyty główne Gigabyte oraz stacje robocze Gigabyte dedykowane dla AMD Ryzen 7000 (Giga Computing)

| Nowości Gigabyte

Serwery Gigabyte, płyty główne Gigabyte oraz stacje robocze Gigabyte dedykowane dla AMD Ryzen 7000

Gigabyte posiada liczną rodzinę płyt głównych, serwerów oraz stacji roboczych dedykowanych dla AMD Ryzen 7000.

Płyty główne Gigabyte dedykowane dla AMD Ryzen 7000
Model Kluczowe cechy

MC13-LE0

MC13-LE0(1.0)

  • AMD Ryzen™ 7000 Series Processors
  • Dual Channel ECC / Non-ECC Unbuffered DDR5, 4 DIMMs
  • 2 x 1GbE LAN ports (Intel® I210)
  • 1 x Dedicated management port
  • BMC ASPEED AST2600
  • PCIe Gen5 Ready x16 slot and M.2 slot
  • 4 x SATA 6Gb/s ports

MC13-LE1

MC13-LE1(1.0)

  • AMD Ryzen™ 7000 Series Processors
  • Dual Channel ECC / Non-ECC Unbuffered DDR5, 4 DIMMs
  • 2 x 10 GbE LAN ports (Intel® X710)
  • 1 x Dedicated management port
  • BMC ASPEED AST2600
  • PCIe Gen5 Ready x16 slot and M.2 slot
  • 4 x SATA 6Gb/s ports

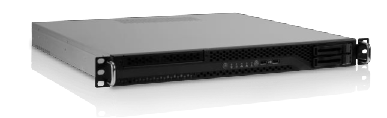

 Serwery rackowe Gigabyte R133, E133, R123, R113.

Serwery Rack Gigabyte dedykowane dla AMD Ryzen 7000
Model Kluczowe cechy

R133-C10 (rev. AAA1)

R133-C10 (rev. AAA1) - Rack Servers

  • AMD Ryzen™ 7000 series processors
  • Single processor, 5nm technology
  • Dual Channel ECC/Non-ECC DDR5 Unbuffered DIMM, 4 x DIMMs
  • 2 x 1Gb/s LAN ports (Broadcom® BCM5720)
  • 1 x Dedicated management port
  • 4 x 3.5"/2.5" SATA hot-swappable bays
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 1 x FHFL PCIe Gen5 x16 slot
  • 1 x FHHL PCIe Gen4 x4 slot
  • Dual 550W (240V) 80 PLUS Platinum redundant power supply

R133-C10 (rev. AAG1)

R133-C10 (rev. AAG1) - Rack Servers

  • AMD Ryzen™ 7000 series processors
  • Single processor, 5nm technology
  • Dual Channel ECC/Non-ECC DDR5 Unbuffered DIMM, 4 x DIMMs
  • 2 x 1Gb/s LAN ports (Broadcom® BCM5720)
  • 1 x Dedicated management port
  • 4 x 3.5"/2.5" SATA hot-swappable bays
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 1 x FHFL PCIe Gen5 x16 slot
  • 1 x FHHL PCIe Gen4 x4 slot
  • 1+1 800W (240V) 80 PLUS Titanium redundant power supplies

 R133-C11 (rev. AAB1)

R133-C11 (rev. AAB1) - Rack Servers

  • Supports 1 x Dual slot Gen5 GPU card
  • AMD Ryzen™ 7000 series processors
  • AMD Ryzen™ 7000 series processors with AMD 3D V-Cache™ Technology
  • Single processor, 5nm technology
  • Dual Channel ECC/Non-ECC DDR5 Unbuffered DIMM, 4 x DIMMs
  • 2 x 10Gb/s LAN ports (Broadcom® BCM57416)
  • 2 x 1Gb/s LAN ports (Broadcom® BCM5720)
  • 1 x Dedicated management port
  • 4 x 3.5"/2.5" SATA hot-swappable bays
  • 4 x 2.5" 9.5mm SATA hot-swappable bays
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 1 x FHFL PCIe Gen5 x16 slot
  • 1 x FHHL PCIe Gen4 x4 slot
  • Dual 800W (240V) 80 PLUS Platinum redundant power supply

 R133-C11 (rev. AAG1)

R133-C11 (rev. AAB1) - Rack Servers

  • Supports 1 x Dual slot Gen5 GPU card
  • AMD Ryzen™ 7000 series processors
  • AMD Ryzen™ 7000 series processors with AMD 3D V-Cache™ Technology
  • Single processor, 5nm technology
  • Dual Channel ECC/Non-ECC DDR5 Unbuffered DIMM, 4 x DIMMs
  • 2 x 10Gb/s LAN ports (Broadcom® BCM57416)
  • 2 x 1Gb/s LAN ports (Broadcom® BCM5720)
  • 1 x Dedicated management port
  • 4 x 3.5"/2.5" SATA hot-swappable bays
  • 4 x 2.5" 9.5mm SATA hot-swappable bays
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 1 x FHFL PCIe Gen5 x16 slot
  • 1 x FHHL PCIe Gen4 x4 slot
  • Dual 800W (240V) 80 PLUS Titanium redundant power supply

R133-C13 (rev. AAB1)

R133-C13 (rev. AAG1) - Rack Servers

  • Supports 1 x Dual slot Gen5 GPU card
  • AMD Ryzen™ 7000 series processors
  • AMD Ryzen™ 7000 series processors with AMD 3D V-Cache™ Technology
  • Single processor, 5nm technology
  • Dual Channel ECC/Non-ECC DDR5 Unbuffered DIMM, 4 x DIMMs
  • 2 x 1Gb/s LAN ports (Broadcom® BCM5720)
  • 1 x Dedicated management port
  • 4 x 3.5"/2.5" SATA hot-swappable bays
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 1 x FHFL PCIe Gen5 x16 slot
  • 1 x FHHL PCIe Gen4 x4 slot
  • Dual 800W (240V) 80 PLUS Platinum redundant power supply

R133-C13 (rev. AAG1)

R133-C13 (rev. AAG1) - Rack Servers

  • Supports 1 x Dual slot Gen5 GPU card
  • AMD Ryzen™ 7000 series processors
  • AMD Ryzen™ 7000 series processors with AMD 3D V-Cache™ Technology
  • Single processor, 5nm technology
  • Dual Channel ECC/Non-ECC DDR5 Unbuffered DIMM, 4 x DIMMs
  • 2 x 1Gb/s LAN ports (Broadcom® BCM5720)
  • 1 x Dedicated management port
  • 4 x 3.5"/2.5" SATA hot-swappable bays
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 1 x FHFL PCIe Gen5 x16 slot
  • 1 x FHHL PCIe Gen4 x4 slot
  • Dual 800W (240V) 80 PLUS Titanium redundant power supply

E133-C10 (rev. AAA1)

E133-C10 (rev. AAG1) - Rack Servers

  • AMD Ryzen™ 7000 series processors
  • Single processor, 5nm technology
  • Dual Channel ECC/Non-ECC DDR5 Unbuffered DIMM, 4 x DIMMs
  • 2 x 1Gb/s LAN ports (Broadcom® BCM5720)
  • 1 x Dedicated management port
  • 2 x 2.5" SATA hot-swappable bays
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 1 x FHFL PCIe Gen5 x16 slot
  • 1 x FHHL PCIe Gen4 x4 slot
  • 1+1 550W (240V) 80 PLUS Platinum redundant power supplies

E133-C10 (rev. AAG1)

E133-C10 (rev. AAG1) - Rack Servers

  • AMD Ryzen™ 7000 series processors
  • Single processor, 5nm technology
  • Dual Channel ECC/Non-ECC DDR5 Unbuffered DIMM, 4 x DIMMs
  • 2 x 1Gb/s LAN ports (Broadcom® BCM5720)
  • 1 x Dedicated management port
  • 2 x 2.5" SATA hot-swappable bays
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 1 x FHFL PCIe Gen5 x16 slot
  • 1 x FHHL PCIe Gen4 x4 slot
  • 1+1 800W (240V) 80 PLUS Titanium redundant power supplies

R123-C00

  • AMD Ryzen™ 7000 series processors
  • Single processor, 5nm technology
  • Dual Channel ECC/Non-ECC DDR5 Unbuffered DIMM, 4 x DIMMs
  • 2 x 1Gb/s LAN ports (Broadcom® BCM5720L)
  • 1 x Dedicated management port
  • 4 x 3.5"/2.5" SATA hot-swappable bays
  • 1 x FHHL PCIe Gen4 x4 slot
  • 2 x LP PCIe Gen4 x4 slot
  • Single 500W (240V) power supply

R113


  • AMD Ryzen™ 7000 series processors
  • Single processor, 5nm technology
  • Dual Channel ECC/Non-ECC DDR5 Unbuffered DIMM, 4 x DIMMs
  • 2 x 1GbE LAN ports (Intel® I210)
  • 1 x Dedicated management port
  • 2 x 2.5" SATA hot-swappable bays
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 1 x FHHL PCIe Gen5 x16 slot
  • Single 350W (240V) 80 PLUS Bronze power supplies

R113

  • AMD Ryzen™ 7000 series processors
  • Single processor, 5nm technology
  • Dual Channel ECC/Non-ECC DDR5 Unbuffered DIMM, 4 x DIMMs
  • 2 x 1GbE LAN ports (Intel® I210)
  • 1 x Dedicated management port
  • 2 x 2.5" SATA hot-swappable bays
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 1 x FHHL PCIe Gen5 x16 slot
  • Single 400W (240V) 80 PLUS Gold power supplies

Stacja robocza Gigabyte.

Stacje robocze Gigabyte / Tower Workstation Gigabyte dedykowane dla AMD Ryzen 7000

W332-Z00 (rev. 100)


  • AMD Ryzen™ 7000 Series Processors
  • Dual Channel ECC / Non-ECC DDR5 Unbuffered DIMM, 4 DIMMs
  • Realtek® DASH Remote Management
  • Realtek® 2.5GbE LAN and GbE DASH LAN
  • PCIe Gen5 Ready x16 slot and M.2 slot
  • Rear HDMI / DP Support
  • Up to 2x 3.5” HDD bays and 2x M.2 slots
  • 500W 80 PLUS Bronze single power supply
