Supermicro I/O Shield, Tarcze, osłony I/O do płyty głównej - miękkie (Akcesoria Supermicro)

22.06.2023 | F.A.Q. • Pozostałe

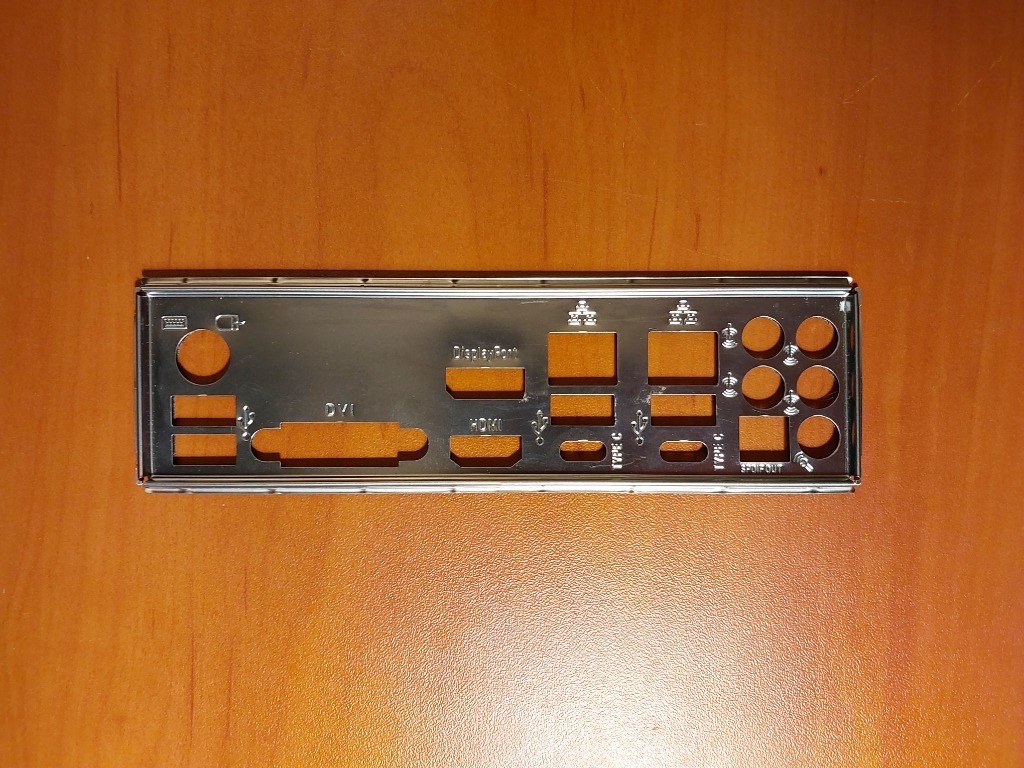

Tarcze, osłony I/O do płyty głównej (I/O Shield)(Akcesoria Supermicro)

Jeżeli szukasz Supermicro I/O shield do płyty głównej Supermicro.

Supermicro oprócz podzespołów serwerowych posiada liczną grupę akcesoriów, w tym tarczę I/O, które zazwyczaj dostarczanę są wraz z płytą główną.

Jeżeli szukasz tarczy / osłony I/O do płyty głównej, obudowy lub serwera, poniżej znajdziesz numery części wraz z opisem.

Osłony I/O Shield do płyt głównych Supermicro
Numer części I/O	Opis	Kompatybilność (Płyta główna)	Kompatybilność (Obudowa)*
MCP-260-00042-0N	Standard I/O Shield with EMI Gasket	Pasuje do większości płyt głównych X9, X10, X11, X12, X13, H11, H12: X9DR3-F X9DR3-LN4F+ X9DR7-LN4F X9DRG-QF X9DRD-IF X9DRE-LN4F X10DRC-LN4+ X10DRC-T4+ X10DRD-I X10DRG-Q X10DRH-C X10DRH-I X10DRI X10DRL-I X10SRH-CF X10SRI-F X10SLM+-LN4F X10SRM-F X10SRL-F X11SSL X11SSL-F X11SSL-nF X11SSi-LN4F X11SSM X11SSM-F X11SSH-F X11SSH-TF X11SSH-LN4F X11SSH-GTF-1585L X11SSH-GTF-1585 X11SSH-GF-1585L X11SSH-GF-1585 X11SSH-CTF X11SSL-CF X11SSA-F X11SCL-F X11SCL-iF X11SCH-F X11SCH-LN4F X11SRM-F X11SRM-VF X11SRL-F X11DPI-N X11DPI-NT X11DPH-i X11DPH-T X11DPH-Tq X11SPL-F X11SPI-TF X11SPH-nCTPF X12STL-F X12STL-IF X12SPO-F X12SPO-NTF X12SPI-TF X12DPI-N6 X12DPI-NT6 X13SEM-F X13SEM-TF H11SSL-i H11SSL-C H11SSL-NC H11DSI H11DSI-NT H12SSL-i H12SSL-C H12SSL-CT H12SSL-NT H12DSI-N6 H12DSI-NT6 A1SRM-2758F A1SRM-2558F A1SRi-2558F A1SRI-2358F A1SAM-2750F A1SAM-2550F A1SAi-2750F A1SAi-2550F	*Pasuje do większości obudów z miejscem na miękki I/O Shield:** 523L-505B 823MTQC-R802LPB 825MBTQC-R802LPB LA25TQC-R609B 825TQ-563LPB 825TQC-600LPB 825TQC-R802LPB 825TQC-R1K03LPB 825BTQC-R1K23LPB LA26E1C4-R609LP 826BAC4-R920LPB 826BAC4-R1K23LPB 826BAC12-R802LPB 826BAC12-R1K23LPB 826BE1C-R920LPB 826BE1C4-R1K23LPB 213BAC8-R1K23LPB 213XAC-R1K05LP 216BAC-R920LPB 216BAC4-R1K23LPB 216BE1C-R920LPB 216BE1C4-R1K23LPB 835TQC-R802B 835TQC-R1K03B 835TQ-R921B 836BA-R920B 836BE1C-R1K03B 836BE1C-R1K23B 836BE2C-R1K03B 842TQC-668B 842XTQ-R606B 842XTQC-R804B 846BA-R920B 846BA-R1K23B 846XA-R1K23B 846XE1C-R1K23B 846XE2C-R1K23B 846BE2C-R1K23B 846BE1C8-R1K23B4 846BE1C-R1K23B 847BA-R1K23LPB 847BE1C12-R1K68LPB4 847BE1C4-R1K23LPB 847BE1C4-R1K23LPB4 847BE2C-R1K23LPB 743AC-668B 743TQ-903B-SQ 743AC-1K26B-SQ 745BTQ-R920B 745BAC-R1K23B-SQ 745BAC-R1K23B 747BTQ-R2K04B 721TQ-350B 721TQ-350B2 GS5B-000R GS50-000R GS5A-754K 731i-300B 731I-404B 732I-668B 732D2-903B 732D3-903B 732D4-668B 732D4-903B 732D3-1K26B 732I-R600B 733TQ-668B 735D4-668B
MCP-260-00042-2N	STD I/O shield for X9/X10/X11 server MB with EMI Gasket & Mylar	X11DPG-QT
MCP-260-00027-0N	Standard I/O Shield with EMI Gasket	Pasuje do większości płyt głównych X7, X8, X9, H8: H8SCM-F H8SGL H8SGL-F X8SIE-F X8STi-LN4 X9DBL-3 X9DBL-3F X9DBL-I X9DBL-IF X9DBU-3F X9DBU-IF X9SCA X9SCA-F X9SCI-LN4 X9SCI-LN4F X9SCL X9SCL+-F X9SCL-F X9SCM X9SCM-F X9SCM-IIF X9SRE X9SRE-3F X9SRE-F X9SRI X9SRI-3F X9SRI-F X9SRL X9SRL-F
MCP-260-00084-0N	Standard I/O Shield for X10SDV-F/TLN4F	X10SDV-F X10SDV-2C-TLN2F X10SDV-4C-TLN2F X10SDV-4C-TLN4F X10SDV-4C+-TLN4F X10SDV-6C-TLN4F X10SDV-6C+-TLN4F X10SDV-8C-TLN4F X10SDV-8C+-LN2F X10SDV-12C-TLN4F X10SDV-12C+-TLN4F X10SDV-16C-TLN4F X10SDV-16C+-TLN4F X11SDV-4C-TLN2F X11SDV-8C-TLN2F X11SDV-8C+-TLN2F X11SDV-12C-TLN2F X11SDV-16C-TLN2F X11SDV-16C+-TLN2F M11SDV-4C-LN4F M11SDV-4CT-LN4F M11SDV-8C-LN4F M11SDV-8CT-LN4F M11SDV-8C+-LN4F A2SDV-8C-TLN5F A2SDV-12C+-TLN5F A2SDV-16C-TLN5F A2SDi-8C-HLN4F A2SDi-8C+-HLN4F A2SDi-4C-HLN4F A2SDi-2C-HLN4F A2SDi-16C-HLN4F A2SDi-16C+-HLN4F A2SDi-12C-HLN4F A1SRM-LN7F-2758 A1SRM-LN7F-2358 A1SRM-LN5F-2358
MCP-260-00098-0N	Standard I/O Shield for X10SDV-4C-7TP4F	X10SDV-7TP4F X10SDV-TP8F X10SDV-7TP8F X10SDV-2C-7TP4F X10SDV-2C-TP8F X10SDV-4C-7TP4F X10SDV-4C+-TP4F X10SDV-8C-TLN4F+ X10SDV-12C-TLN4F+ X10SDV-12C+-TP8F X11SDV-4C-TP8F X11SDV-8C-TP8F X11SDV-12C-TP8F X11SDV-16C-TP8F X12SDV-4C-SP6F X12SDV-4C-SPT4F X12SDV-4C-SPT8F X12SDV-8C-SP6F X12SDV-8C-SPT4F X12SDV-8C-SPT8F X12SDV-8CE-SP4F X12SDV-10C-SPT4F X12SDV-10C-SP6F X12SDV-14C-SPT8F X12SDV-16C-SPT8F X12SDV-20C-SPT8F A2SDi-TP8F A2SDi-LN4F A2SDi-H-TP4F A2SDi-H-TF A2SDI-16C-TP8F
MCP-260-00058-0N	Standard I/O Shield for X10SBA-L with EMI Gasket	X10SBA X10SBA-L X11SAA X11SBA-LN4F X11SBA-F A2SAV A2SAV-L A2SAV-2C-L A3SEV-2C-LN4 A3SEV-4C-LN4
MCP-260-00063-0N	Standard I/O Shield for X10SLQ	X10SLQ X10SLQ-L
MCP-260-00063-1N	Standard I/O Shield for X11SSQ	X11SSQ X11SSQ-L X11SAE-M X11SAE-F X11SAE
MCP-260-00070-0N	Standard I/O Shield for X10SLV	X10SLV X10SLV-Q
MCP-260-00070-1N	Standard I/O Shield for X11SSV-Q	X11SSV-Q X11SSV-LVDS
MCP-260-00056-1N	Standard I/O Shield for X11SSV-M4/F	X11SSV-M4F X11SSV-M4
MCP-260-00130-0N	Standard I/O Shield for X11SCM-LN8F with EMI Gasket	X11SCM-F X11SCM-LN8F X11SCL-LN4F X12SPM-TF X12SPM-LN4F X12SPM-LN6TF X12SPL-LN4F X12SPL-F
MCP-260-00093-0N	Standard I/O Shield for X11SSZ with EMI Gasket	X11SSZ-F X11SSZ-TLN4F X11SSZ-QF X12SCZ-F X12SCZ-QF X12SCZ-TLN4F
MCP-260-00146-0N	Standard I/O Shield for X11SRi-IF with EMI Gasket	X11SRi-IF
MCP-260-00118-0N	Standard I/O Shield for X11SRA with EMI Gasket	X11SRA X11SRA-F X11SRA-RF
MCP-260-00125-0N	Standard I/O Shield for X11SCQ/-L with EMI Gasket	X11SCQ-L X11SCQ
MCP-260-00125-1N	Standard I/O Shield for X12SCQ	X12SCQ
MCP-260-00126-0N	Standard I/O Shield for X11SCZ with EMI Gasket	X11SCZ-Q X11SCZ-F
MCP-260-00136-0N	Standard I/O Shield for X11SCV-Q	X11SCV-Q X11SCV-L
MCP-260-00109-0N	Standard I/O Shield for X11SPM-TPF with EMI Gasket	X11SPH-nCTF X11SPH-nCTPF X11SPM-F X11SPM-TF X11SPM-TPF
MCP-260-00142-0N	Standard I/O Shield for X11SPA-TF with EMI Gasket	X11SPA-T X11SPA-TF
MCP-260-00110-0N	Standard I/O Shield for X11DPL-i with EMI Gasket	X11DPL-I
MCP-260-00115-0N	Standard I/O Shield for X11DAi-N with EMI Gasket and front metal	X11DAi-N X12DAI-N6
MCP-260-00119-0N	Standard I/O Shield for X11DAC with EMI Gasket and front metal	X11DAC
MCP-260-00143-0N	Standard I/O Shield for X11SDW with EMI Gasket	X11SDW-4C-TP13F X11SDW-8C-TP13F X11SDW-12C-TP13F X11SDW-14CNT-TP13F X11SDW-14C-TP13F X11SDW-16C-TP13F
MCP-260-00152-0N	Standard I/O Shield for X11SDW-14CN-TP13F+ with EMI Gasket	X11SDW-4C-TP13F+ X11SDW-14CN-TP13F+ X11SDW-16C-TP13F+
MCP-260-00122-0N	Standard I/O Shield for X11SCA Series	X11SCA X11SCA-W X11SCA-F
MCP-260-00164-0N	STD I/O Shield for X12STH-F with EMI Gasket	X12STH-F X12STH-SYS X12STH-LN4F
MCP-260-00154-0N	Standard I/O Shield for X12SPZ	X12SPZ-LN4F X12SPZ-SPLN6F
MCP-260-00158-0N	Standard I/O shield for X12SCV	X12SCV-W X12SCV-LVDS
MCP-260-00151-0N	Standard I/O Shield for X12SAE with EMI Gasket	X12SCA-F X12SCA-5F X12SAE-5 X12SAE X13SAE X13SAE-F
MCP-260-00148-0N	Standard I/O Shield for X12SPA-TF with EMI Gasket	X12SPA-TF
MCP-260-00156-0N	Standard I/O Shield for X12DPL-i6/NT6 with EMI Gasket	X12DPL-i6 X12DPL-NT6
MCP-260-00150-0N	Standard I/O Shiled for X12DPG-QT6 with EMI Gasket	X12DPG-QT6 X12DPG-QBT6
MCP-260-00125-1N	Standard I/O Shield for X13SAQ with EMI Gasket	X13SAQ
MCP-260-00166-0N	Standard I/O Shield for X13SAV-LVDS	X13SAV-LVDS
MCP-260-00184-0N	Standard I/O Shield for X13SAV-PS	X13SAV-PS
MCP-260-00177-0N	Standard I/O Shield for X13SAZ with EMI Gasket	X13SAZ-F X13SAZ-Q
MCP-260-00042-1N	Standard I/O Shield for X13SEI-TF/-F with EMI Gasket	X13SEI- X13SEI-TF
MCP-260-00182-0B	Standard I/O Shield for X13SWA-TF with EMI Gasket & Black Mylar	X13SWA-TF
MCP-260-00183-0B	Standard I/O Shield for X13SRA-TF with EMI Gasket & Black Mylar	X13SRA-TF
MCP-260-00042-3N	STD I/O shield for X13 server MB with venting holes,RoHS	X13DEI X13DEI-T
MCP-260-00181-0B	STD I/O Shield for X13DAI-T with EMI Gasket & Black Mylar,Ro	X13DAI-T
MCP-260-00159-0N	Standard I/O Shield for M12SWA-TF	M12SWA-TF
MCP-260-00159-1N	Standard I/O Shield for M12SWA-TF	M12SWA-TF
MCP-260-00073-0N		H13SSL-N H13SSL-NT
MCP-260-00185-0B	Standard I/O Shield for H13SAE-MF	H13SAE-MF
MCP-260-00161-0N	Standard I/O Shield for C9Z590-CG(W) with EMI & black Mylar	C9Z590-CG C9Z590-CGW C9Z790-CG C9Z790-CGW
MCP-260-00147-0N	Standard I/O Shield for C9Z490-PGW	C9Z490-PG C9Z490-PGW
MCP-260-00141-0N	Standard I/O Shield for C9Z390-PGW	C9Z390-PGW
MCP-260-00138-0N	Standard I/O Shield for C9Z390-CGW	C9Z390-CG C9Z390-CGW
MCP-260-00129-0N	Standard I/O Shield for C9Z390-CG-IW	C9Z390-CG-IW
MCP-260-00117-1N	Standard I/O Shield for C9X299-RPGF-L	C9X299-PGF-L C9X299-RPGF-L
MCP-260-00117-0N	Standard I/O Shield for C9X299-PG	C9X299-PGF C9X299-RPGF
MCP-260-00140-0N	Standard I/O Shield for C9X299-PG300F	C9X299-PG300F
MCP-260-00124-0N	Standard I/O Shield for C9X299-PG300	C9X299-PG300
MCP-260-00105-0N	Standard I/O Shield for C7Z170-SQ	C7Z170-SQ
MCP-260-00106-0N	Standard I/O Shield for C7Z170-M	C7H170-M C7Z170-M
MCP-260-00077-0N	Standard I/O Shield for C7X99-OCE-F	C7X99-OCE-F
MCP-260-00048-0N	Standard I/O Shield for C7Q67	C7Q67
MCP-260-00123-1N	Standard I/O Shield for C7C242-CB-MW	C7C242-CB-M C7C242-CB-MW
MCP-260-00133-0N	Standard I/O Shield for A3SSV-8C-SPLN10F	A2SDV-4C-LN10PF A2SDV-4C-LN8F A2SDV-8C-LN8F A2SDV-8C-LN10PF A3SSV-8C-SPLN10F A3SSV-16C-SPLN10F A3SSV-24C-SPLN10F
MCP-260-00173-0N	Standard I/O Shield for A3SPI-8C-LN6PF	A3SPI-4C-HLN4F A3SPI-4C-LN6PF A3SPI-8C-LN6PF A3SPI-8C-HLN4F
MCP-260-00033-0N	Standard Size IO Shield for MB C7SIM-Q	A1SA7-2750F
MCP-260-00108-0N	Standard I/O shield for C7C232-CB-ML W/O EMI Gasket	C7C232-CB-ML
MCP-260-00011-0N	Standard I/O Shield without any opening for JBOD	-	826BE2C-R609JBOD 216BE1C-R609JBOD 216BE2C-R609JBOD 836BE1C-R609JBOD 836BE2C-R609JBOD 836BE1C-R1K03JBOD 836BE2C-R1K03JBOD 846BE1C-R1K03JBOD 846BE1C-R609JBOD 846BE2C-R609JBOD 846BE2C-R1K03JBOD 417BE1C-R1K23JBOD
